VK 2306

For industrial applications with small material loads. Particularly suitable for PET compaction and for special applications.

Talk to an expert
Hero image
Feature image

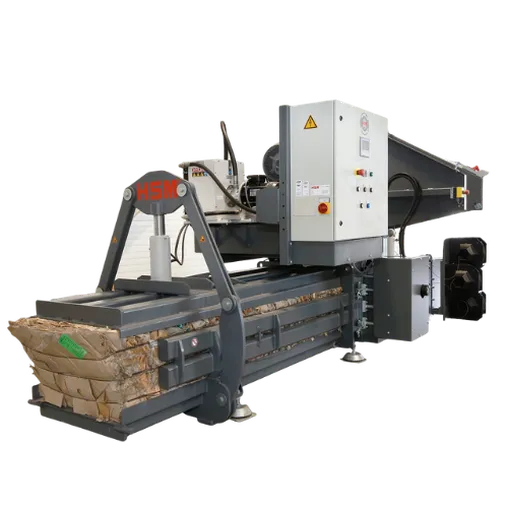

horizontal channel baling press

Specially engineered for PET compaction and special applications

The VK 2306 is a powerful channel baling press specifically optimized for PET bottle compaction and special industrial applications. With a throughput of up to 121 m³/h and 240 kN pressing power, it excels at processing PET bottles, cardboard, plastic film, and mixed paper. Available in two motor configurations (9.2 kW or 15 kW) to match your operational requirements.

Perfect for:
✓ PET bottle recycling operations and beverage distribution centers
✓ Special applications requiring optimized compaction performance
✓ Continuous loading with conveyor belt or air feeding systems
✓ Facilities processing mixed recyclable materials with PET focus

Built for PET recycling excellence

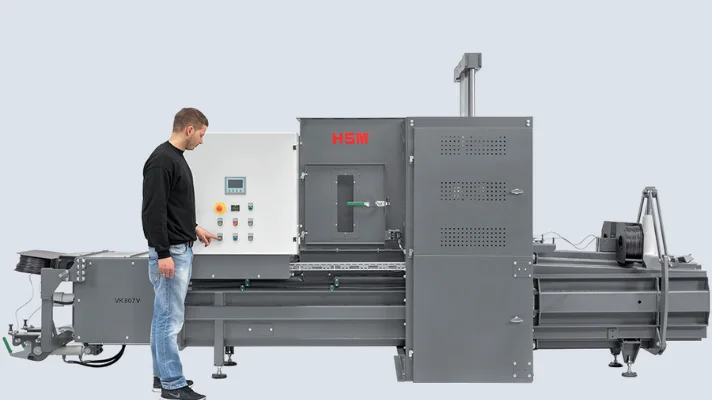

Flexible power configurations

Flexible power configurations

Choose between 9.2 kW (66 m³/h) or 15 kW (121 m³/h) motor configurations to perfectly match your throughput requirements and energy efficiency goals.

Optimized for PET and special applications

Optimized for PET and special applications

Specially engineered for PET bottle compaction with powerful 240 kN pressing force (64 N/cm²), making it ideal for beverage operations and recycling facilities.

Video thumbnail

Technical Specifications

Pressing power: 240 kN (64 N/cm²)
Bale size: 750 × 500 × 600-1200 mm (W × H × L)
Loading aperture: 670 × 600 mm (W × L)
Driving power: 9.2 kW or 15 kW (choose based on throughput needs)
Cycle time: 12.3s (9.2 kW) or 6.7s (15 kW)
Throughput: up to 66 m³/h (9.2 kW) or 121 m³/h (15 kW)
Voltage: 400 V / 50 Hz
Dimensions: 5295 × 2863 × 1565 mm (L × W × H)
Weight: 3500 kg
Consumables: Wire strapping (2.8mm)

Download datasheet
